SPECIFICATIONS

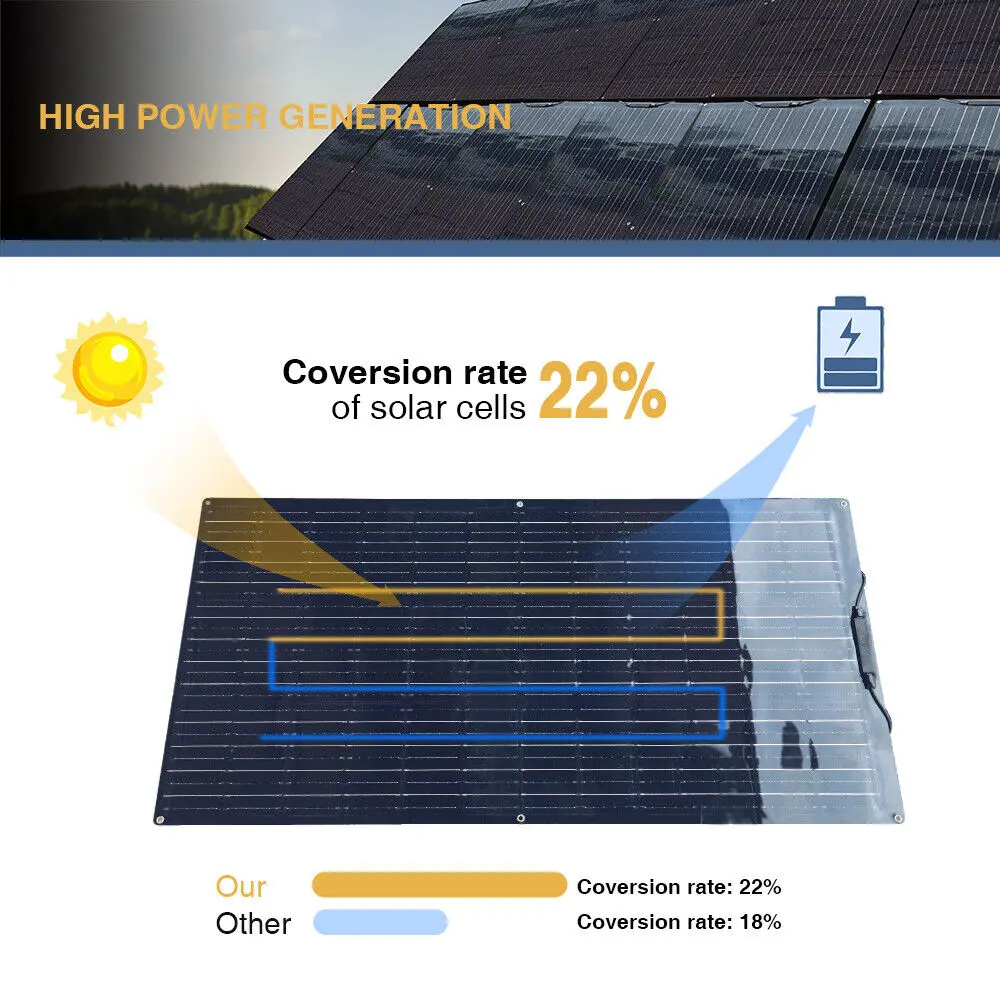

Module Efficien: 24

is customized: Yes

Max. Power: 200W

Number of Cells: 36

Size: 1060x530 3 pcs

Material: Monocrystalline Silicon

Model Number: Off Grid Solar Power System

Nominal Capacity: 12V 24V to 110V 220V

Foldable Solar Panel: No

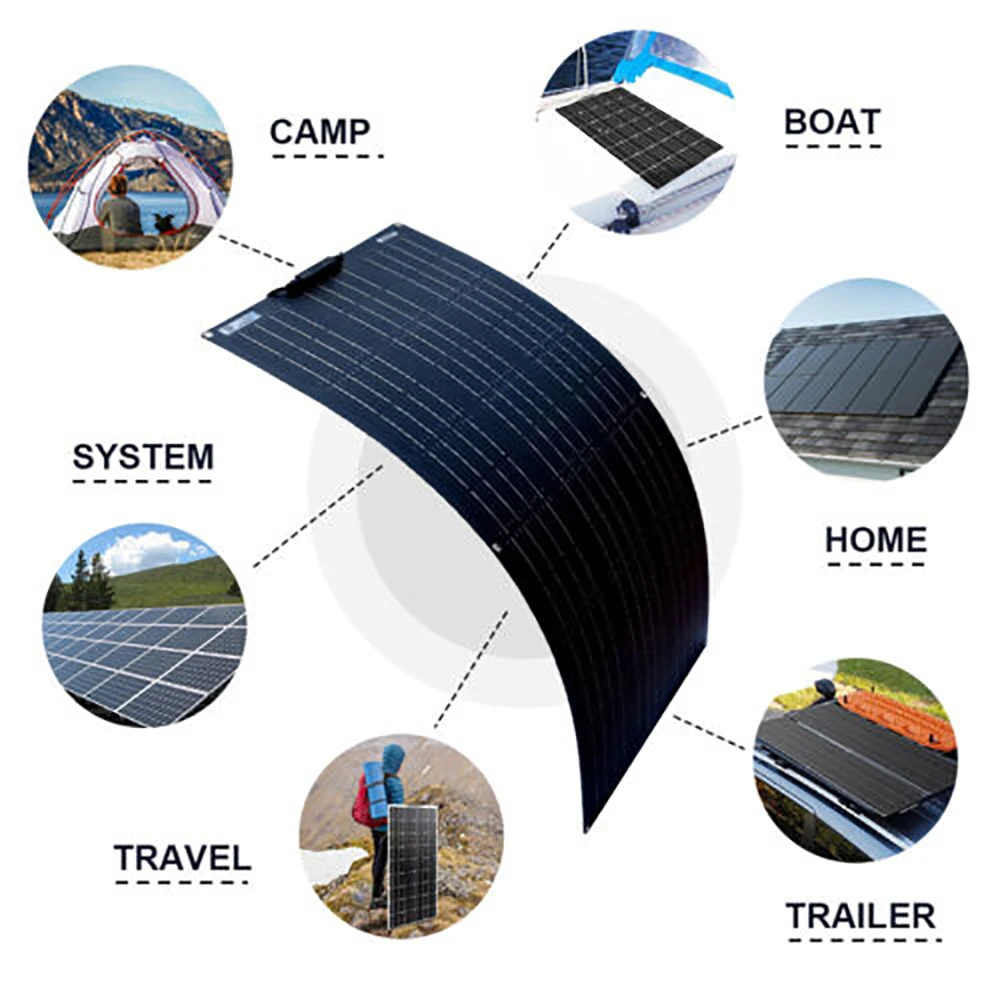

Flexible Solar Panel: Yes

Number of Panels: 2

Type: Solar Panel

Origin: Mainland China

Certification: CE,WEEE

Solar panel power: 200W 2x100W

Inverter Maximum power: 1000W

Inverter Load power: 600W

Inverter: 12V 24V to 110V 220V

Off Grid Solar Power System: Requires connection with battery for use

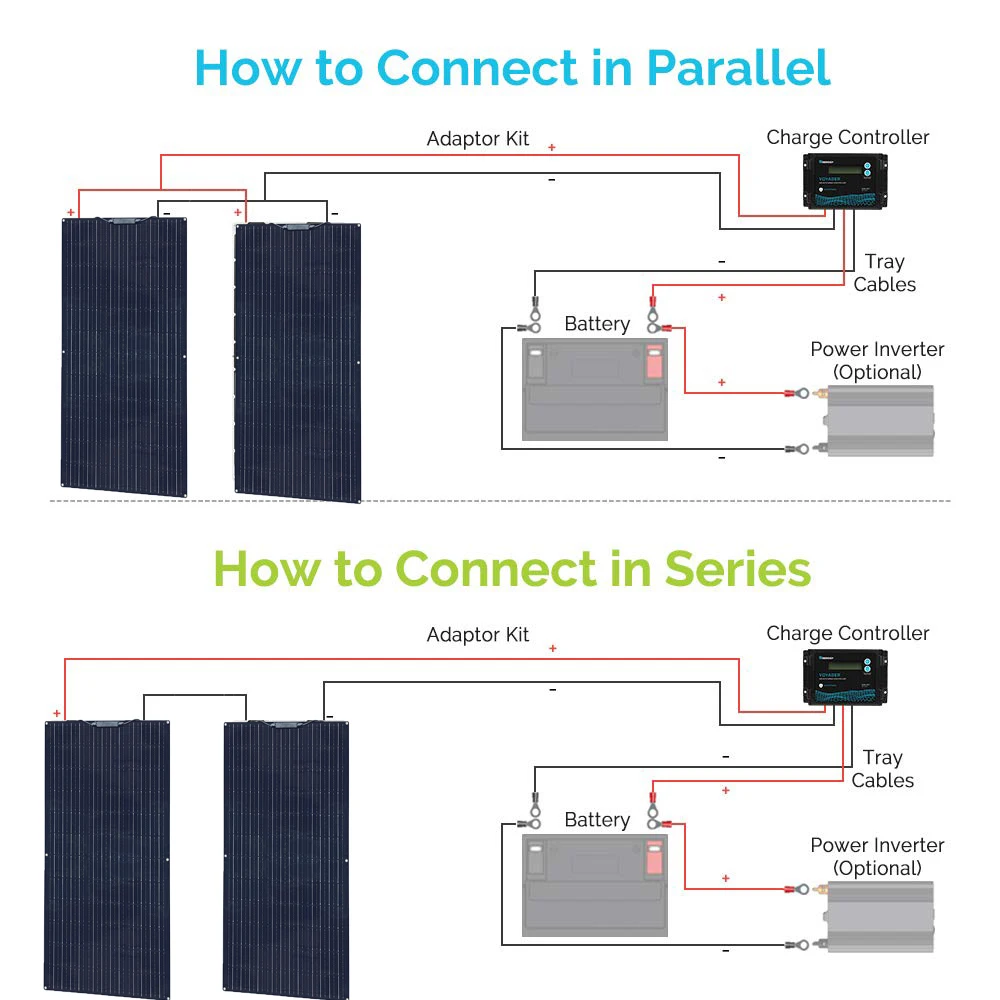

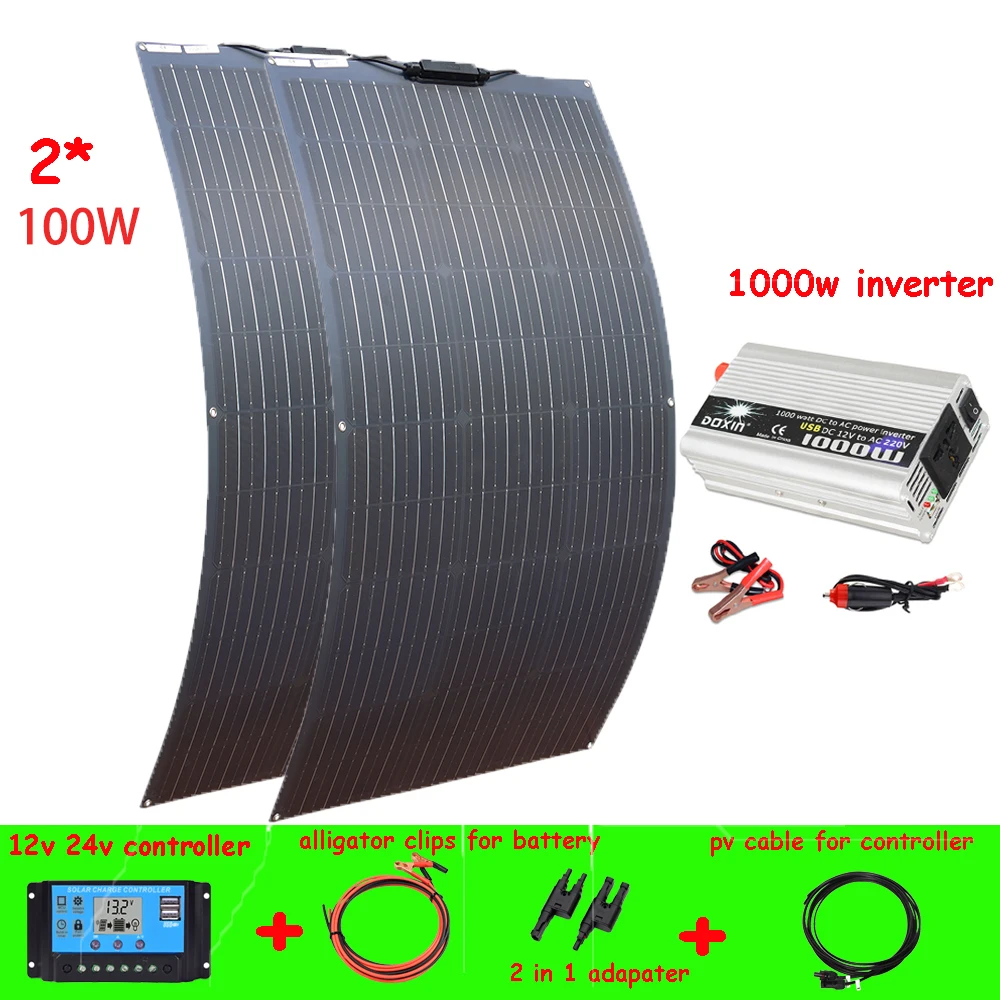

200W Off Grid Solar Power System Kit RV Starter Beginner for Shed/Home: 2Pcs 110W Solar Panel + 20A Controller + 1000W Inverter + Cable + 2into 1 Adapter

Solar Panel Specification

100W solar panel

Monocrystalline high efficiency

Rated power: 100W

Open Circuit Voltage (Voc): 23.7V

Maximum supply voltage (Vpm): 19.8V

Short circuit current (Isc): 5.55 A

Working current (Iop): 5.05A

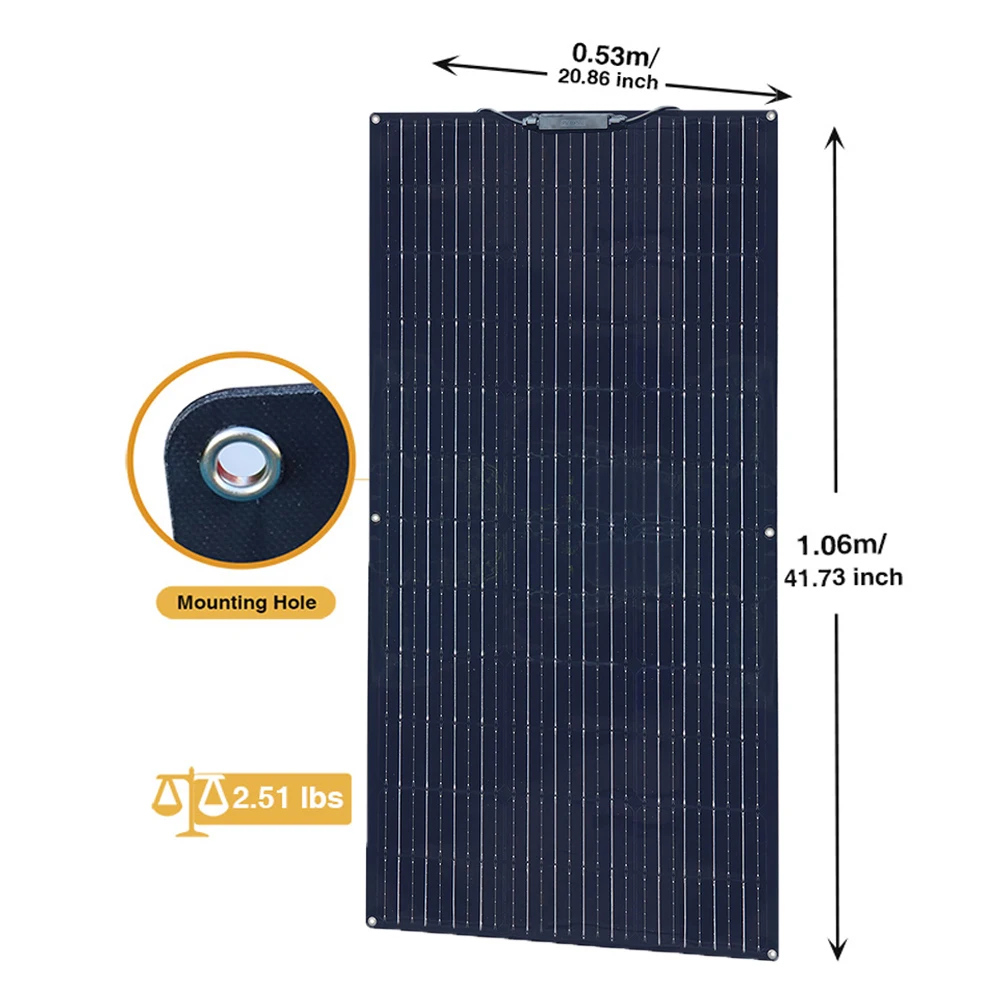

Size:1060*530*2.5mm

Output tolerance: ±3%

Temperature range: -40℃ to +80℃

Weight 2 kg

Main material* Mono crystalline

Frame material EVA+PET

Electrical Specification Performance Under Standard Test Conditions(STC*)

Maximum power Pmax 100 Wp

Open circuit voltage Voc 23.76 V

Maximum power point voltage Vmpp 19.8 V

Short-circuit current I sc 5.55 A

Maximum power point current I mpp 5.05A

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-3%) of the STC efficiency (1000 W/m2) is achieved.

Component Material

Cells per module 36

Cell dimensions 166mm*83mm

Cell type Monocrystalline Silicon

Front PET

System Intergration Technician

Maximum system voltage SC II 1000 V

Maximum reverse current 10 A

Maximum system voltage USA NEC 600 V

Junction box IP67
